【Device Papers】Carbon-Nanotube/β-Ga₂O₃ Heterojunction PIN Diodes

      Researchers from the The University of Utah have published a dissertation titled "Carbon-Nanotube/β-Ga₂O₃ Heterojunction PIN Diodes" in ACS Applied Electronic Materials.

Abstract

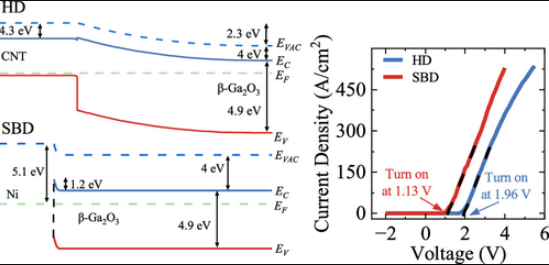

      β-Ga₂O₃ is gaining attention as a promising semiconductor for next-generation high-power, high-efficiency, and high-temperature electronic devices, thanks to its exceptional material properties. However, challenges such as the lack of viable p-type doping have hindered its full potential, particularly in the development of ambipolar devices. This work introduces a heterojunction diode (HD) that combines p-type carbon nanotubes (CNTs) with i- and n-type β-Ga₂O₃ to overcome these limitations. For the first time, a CNT/β-Ga₂O₃ hetero-p-n-junction diode is fabricated. Compared to a traditional Schottky barrier diode (SBD) with the same β-Ga₂O₃ epilayer, the CNT/β-Ga₂O₃ HD demonstrates significant improvements, including a higher rectifying ratio (1.2 × 10¹¹ ), a larger turn-on voltage (1.96 V), a drastically reduced leakage current at temperatures up to 300 °C, and a 26.7% increase in breakdown voltage. Notably, the CNT/β-Ga₂O₃ HD exhibits a low ideality factor of 1.02, signifying an ideal interface between the materials. These results underline the potential of CNT/β-Ga₂O₃ heterojunctions for electronic applications, offering a promising solution to the current limitations in β-Ga₂O₃-based devices.

DOI：

https://doi.org/10.1021/acsaelm.5c00631
